Low-voltage lithium battery special vehicles are a new series independently developed with deep insights into electric and internal combustion forklifts. Breaking traditional designs, they use a standard architecture and new energy platform, offering superior efficiency, power, and reliability—redefining the next generation of electric forklifts.

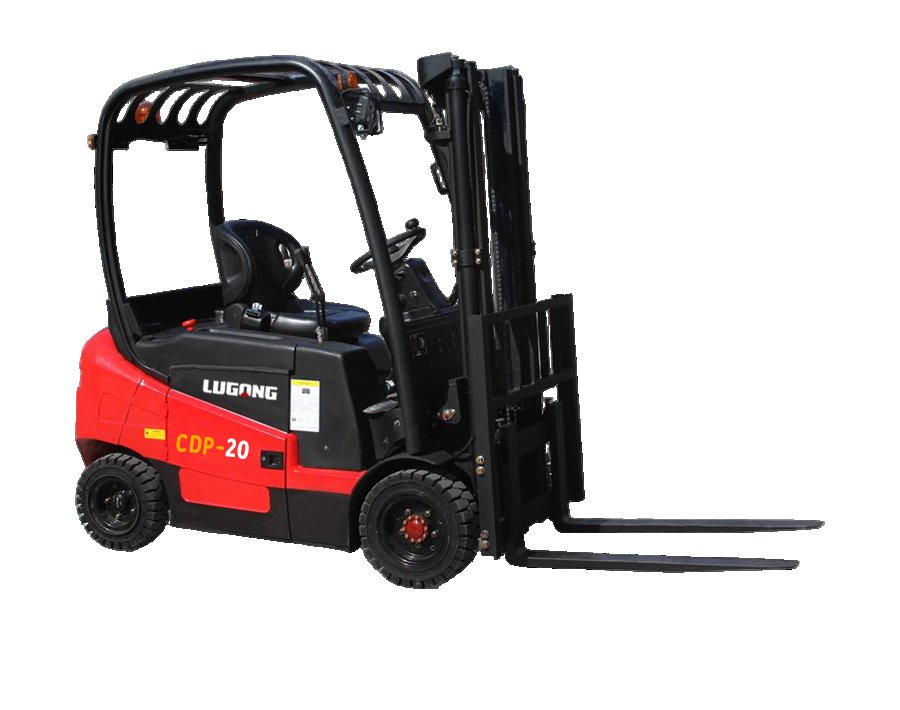

2 TON ELECTRIC FORKLIFT
Motor: 8kW drive / 10kW oil pump
Lifting Height: 2-stage mast, up to 3m
Rated Load: 2000kg
The backbone of the Lugong ER4T design: The legendary articulated oscillating floating joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction, In addition, the machine has unrivalled manceuyrability
| Main Technical Parameters | ||
| Power type | - | accumulator |
| Rated lifting load | kg | 2000 |
| Load center distance | mm | 500 |
| Driving mode | - | seat driving |
| Length with fork | mm | 3550 |
| Length without fork | mm | 2480 |
| Width | mm | 1180 |
| Height when mast not raised | mm | 1995 |
| Top guard height | mm | 2210 |
| Maximum height during operation | mm | 4100 |
| Distance seat to roof guard | mm | 1070 |
| Wheelbase | mm | 1650 |
| Front overhang | mm | 410 |
| Rear overhang | mm | 420 |
| Front wheel track | mm | 1000 |
| Rear wheel track | mm | 945 |
| Minimum ground clearance | mm | 110 |
| Maximum lifting height | mm | 3000 |
| Free lifting height | mm | 150 |
| Fork adjustment range | mm | 1040/200 |
| Minimum turning radius (outer) | mm | 2285 |
| Minimum right-angle aisle width | mm | 3995 |
| No-load max lifting speed | mm/s | 280 |
| Full-load max lifting speed | mm/s | 260 |
| No-load max travel speed | km/h | 14 |
| Full-load max travel speed | km/h | 13 |
| Full-load max gradeability | % | 15 |
| Forklift weight (no load) | kg | 3400 |
| Tire type (F/R) | - | Air inflation tire |
| Tire size (F) | - | 6.50-10 |
| Tire size (R) | - | 18×7-8 |
| Service brake | - | Hydraulic-pedal |
| Parking brake | - | Mechanical-manual |
| Battery voltage/capacity | V/Ah | 48/300 |
| Drive motor power | kW | 8 |
| Pump motor power | kW | 10 |
