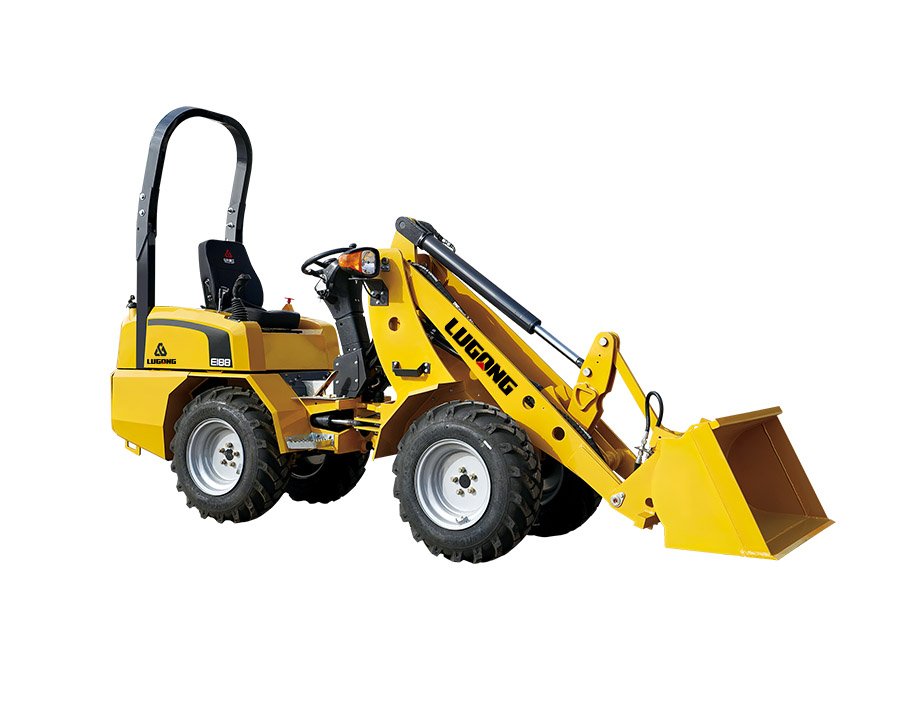

E188 mini loader, 4.15m long, 1m wide, 2.48m high, ideal for gardens, basements, containers, and narrow spaces. Articulated design ensures flexible steering and safe maintenance. Equipped with Euro 5 Yanmar engine, optional Kubota/Xinchai. Offers powerful, efficient performance without electric limits.
Mini Wheel Loader
Bucket capacity：0.3m³
Rated load：600kg
Rated power：18.7KW
The backbone of the Lugong ER4T design: The legendary articulated oscillating floating joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction, In addition, the machine has unrivalled manceuyrability
| Main Technical Parameters | ||
| Bucket capacity | m³ | 0.3 |
| Rated load | kg | 600 |
| Machine weight | kg | 2000 |
| Overall dimension (L x W x H) | mm | 4150 x 1000 x 2480 |
| Wheel base | mm | 1600 |
| Wheel track | mm | 872 |
| Bucket width | mm | 1000 |
| Standard dumping height | mm | 2600 |
| Optional dumping height | mm | / |
| Turning radius | mm | 4000 |
| Standard Tires | / | 10. 0/75-15.3 |
| Engine model | / | Yanmar388 |
| Rated power | kw | 18.7 |
