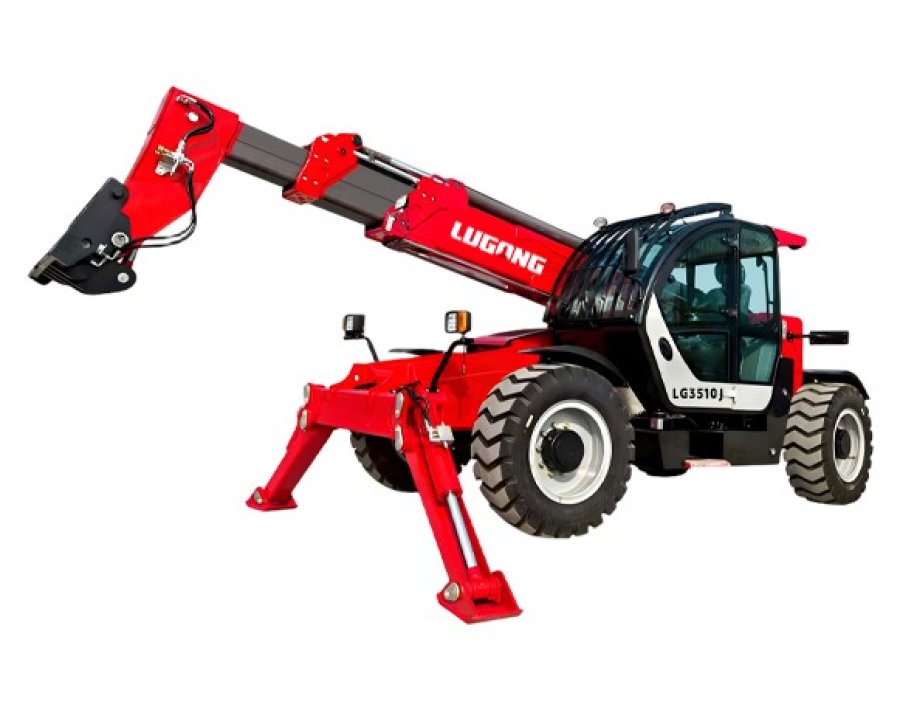

LG3510J

This telescopic forklift is built with a reinforced steel frame and precision telescopic arm for stability and efficiency. Equipped with 4WD, high/low transmission, and three steering modes, it handles any terrain with ease. Reliable components, a spacious cab, and multi-tool compatibility ensure durability, comfort, and versatility.

Technical Parameter

Rated loading：3500KG

Operating Weight : 10800KG

Rated Power : 85KW

Inquire now

Product details

Item	Unit	Data
Total Length	mm	6300
Total Width	mm	2320
Total Height	mm	2500
Overall Weight	KG	10800
Width outside the cab	mm	960
Track Width	mm	1820
Wheelbase	mm	3400
Ground Clearance	mm	400
Longitudinal Approach Angle	°	16
Departure Angle	°	28
Fork Tilt-Up Angle	°	20
Fork Tilt-Down Angle	°	100
Outer Turning Radius	mm	4300
Tyre Model		400/70R-24
Diesel Tank Capacity	L	95
Hydraulic Oil Tank Capacity	L	110
Top Speed	km/h	30
Rated Load Capacity	KG	3500
Maximum Lifting Height	m	11.7
Maximum Forward Reach	m	8.8
Operating System Pressure	apm	21
Engine Standards		Stage-2
Manufacturer		YUCHAI
Engine Model		YCD4J22T-115
Rated Power	KW	85
Transmission		4×4
Drive Type		Front Wheel Steering/Four Wheel Steering/Crab Steering
