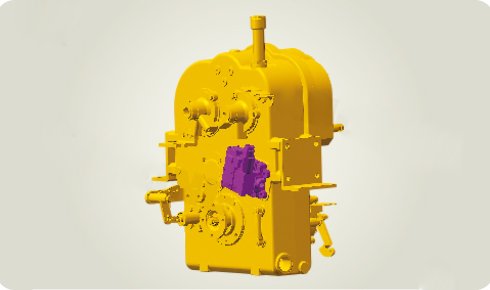

All-metal shell resists heat and improves cooling. Large wheel-side drive boosts torque and efficiency with Lugong gearbox. Stamped body offers strength and space. Supports various attachments for versatile tasks.

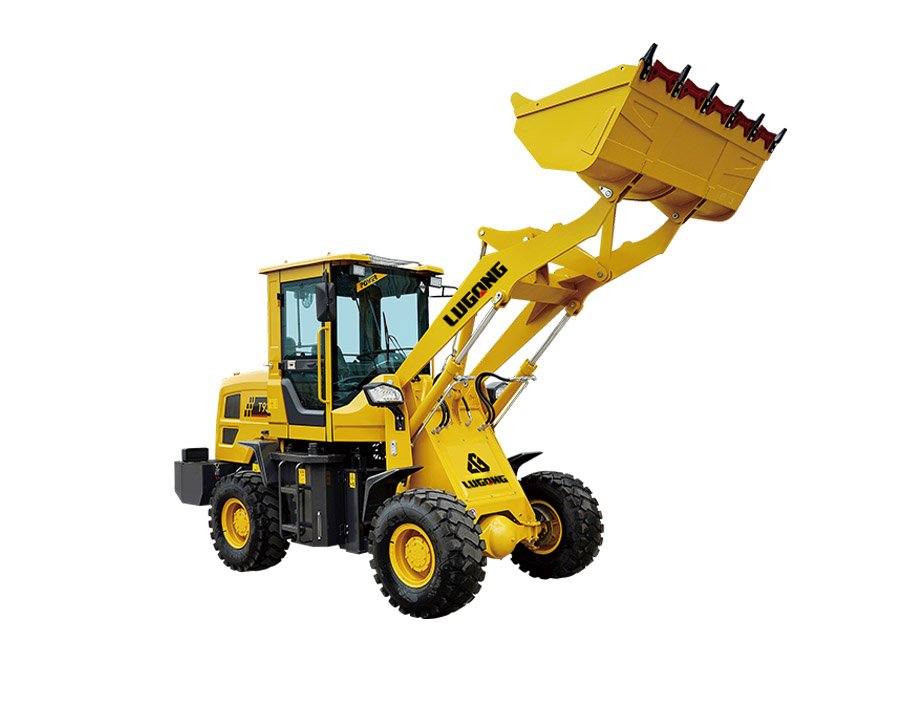

T series 1.6TON Compact Wheel loader
Bucket capacity：0.8m³
Rated load：1600kg
Rated power：55kw
The backbone of the Lugong ER4T design: The legendary articulated oscillating floating joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction, In addition, the machine has unrivalled manceuyrability
Main Technical Parameters | ||
Bucket capacity | m³ | 0.8 |
Rated load | kg | 1600 |
Machine weight | kg | 3800 |
Overall dimension (L x W x H) | mm | 5530 x 1850 x 2750 |
Wheel base | mm | 2220 |
Wheel track | mm | 1500 |
Bucket width | mm | 1900 |
Standard dumping height | mm | 3200 |
Optional dumping height | mm | 3500/3800/4500 |
Turning radius | mm | 4900 |
Standard Tires | / | 20.5/70-16 |
Engine model | / | Huafeng 4102 |
Rated power | kw | 55 |
