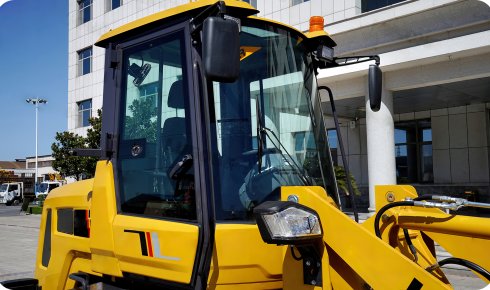

Reinforced axle and Lugong steel tyres handle heavy loads and tough jobs. Streamlined hood, wide-view cab, ergonomic design, optional 3.8–5m lifts and attachments ensure safe, efficient, and comfortable operation.

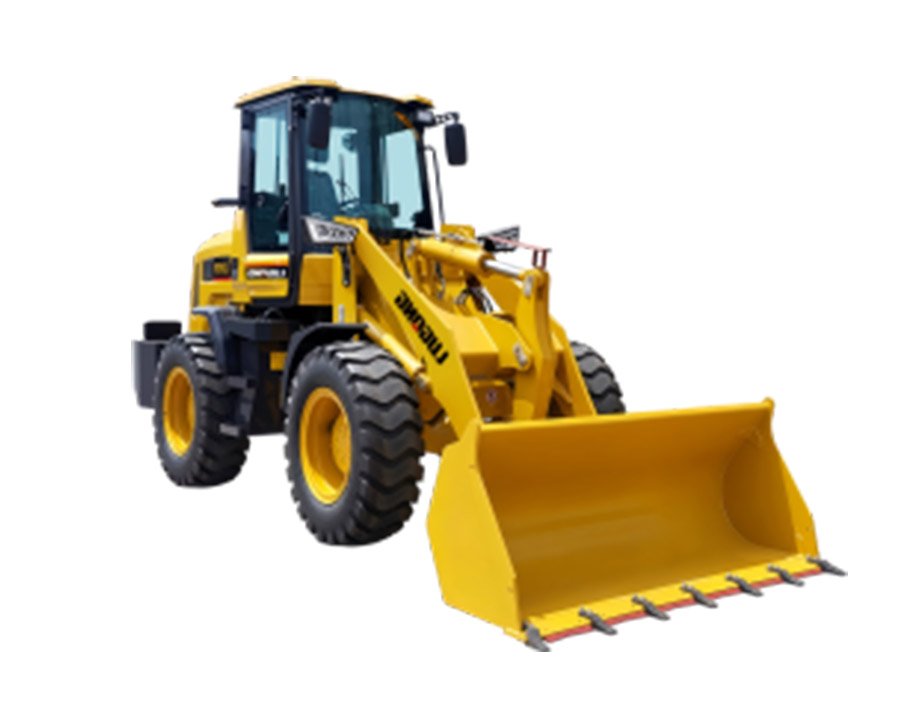

2.2 Ton Compact Wheel loader
Bucket capacity：1.2m³
Rated load：2200kg
Rated power：85kw
The backbone of the Lugong ER4T design: The legendary articulated oscillating floating joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction, In addition, the machine has unrivalled manceuyrability
| Main Technical Parameters | ||
| Bucket capacity | m³ | 1.2 |
| Rated load | kg | 2200 |
| Machine weight | kg | 6000 |
| Overall dimension (L x W x H) | mm | 6350 x 2100 x 2950 |
| Wheel base | mm | 2560 |
| Wheel track | mm | 1680 |
| Bucket width | mm | 2200 |
| Standard dumping height | mm | 3500 |
| Optional dumping height | mm | 4500/5000 |
| Turning radius | mm | 5000 |
| Standard Tires | / | 16/70-24 |
| Engine model | / | Yudong4105 turbo |
| Rated power | kw | 85 |
