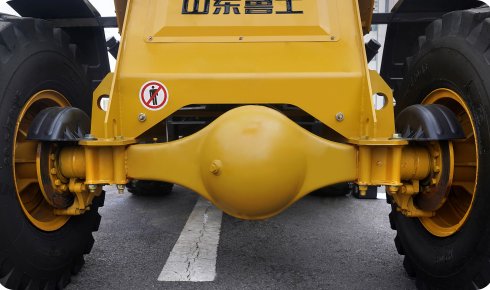

All-metal shell resists heat and improves cooling. Large wheel-side drive boosts torque and efficiency with Lugong gearbox. Stamped body offers strength and space. Supports various attachments for versatile tasks.

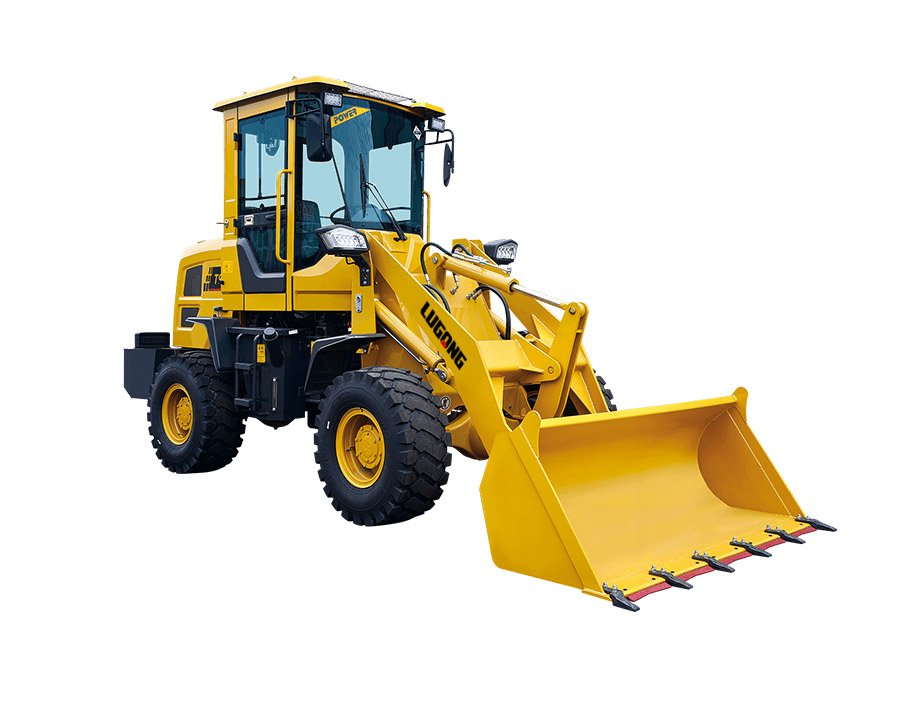

T series 1.2TON Compact Wheel loader
Bucket capacity：0.6m³
Rated load：1200kg
Rated power：42kw
The backbone of the Lugong ER4T design: The legendary articulated oscillating floating joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction, In addition, the machine has unrivalled manceuyrability
| Main Technical Parameters | ||
| Bucket capacity | m³ | 0.6 |
| Rated load | kg | 1200 |
| Machine weight | kg | 3000 |
| Overall dimension (L x W x H) | mm | 5050 x 1850 x 2750 |
| Wheel base | mm | 2150 |
| Wheel track | mm | 1500 |
| Bucket width | mm | 1800 |
| Standard dumping height | mm | 2900 |
| Optional dumping height | mm | / |
| Turning radius | mm | 4700 |
| Standard Tires | / | 20.5/70-16 |
| Engine model | / | Sida 490 |
| Rated power | kw | 42 |
