LM series loader features a compact modular design with integral gearbox, electronic shift, FOPS/ROPS-certified cab, cedar leaf tyres, and a new quick-change device for stronger, versatile performance.

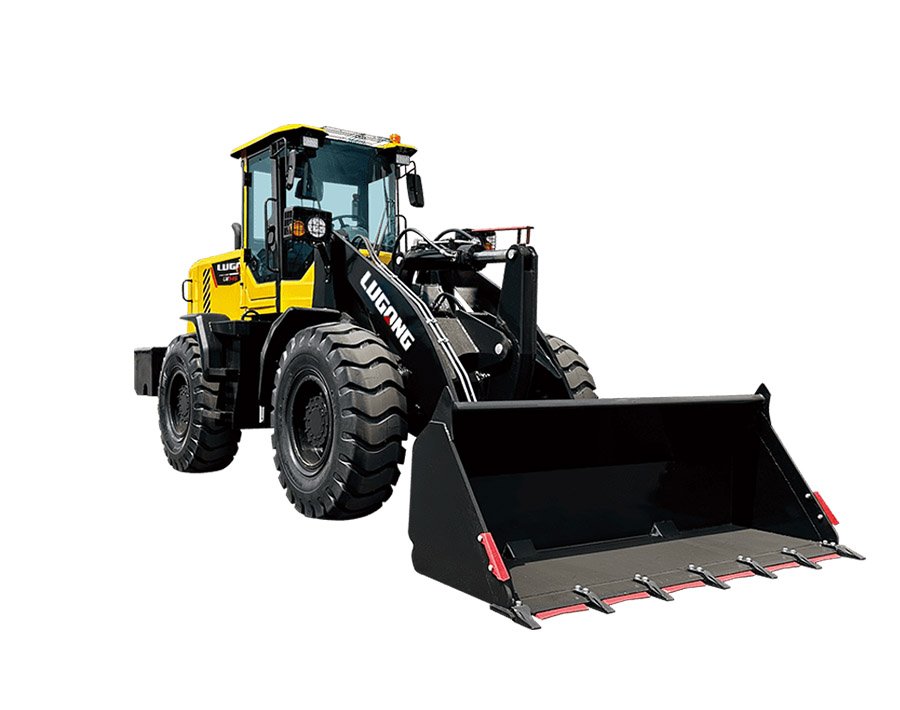

LM series 2.8TON Wheel loader
Bucket capacity：1.5m³
Rated load：2800kg
Rated power：92kw
The backbone of the Lugong ER4T design: The legendary articulated oscillating floating joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction, In addition, the machine has unrivalled manceuyrability
| Main Technical Parameters | ||
| Bucket capacity | m³ | 1.5 |
| Rated load | kg | 2800 |
| Machine weight | kg | 8200 |
| Overall dimension (L x W x H) | mm | 7300 x 2300 x 3050 |
| Wheel base | mm | 2800 |
| Wheel track | mm | 1850 |
| Bucket width | mm | 2400 |
| Standard dumping height | mm | 3800 |
| Optional dumping height | mm | 4500/5000 |
| Turning radius | mm | 5500 |
| Standard Tires | / | 17.5-25 |
| Engine model | / | Weichai Deutz 6105 Turbo |
| Rated power | kw | 92 |
