LM series loader features a compact modular design with integral gearbox, electronic shift, FOPS/ROPS-certified cab, cedar leaf tyres, and a new quick-change device for stronger, versatile performance.

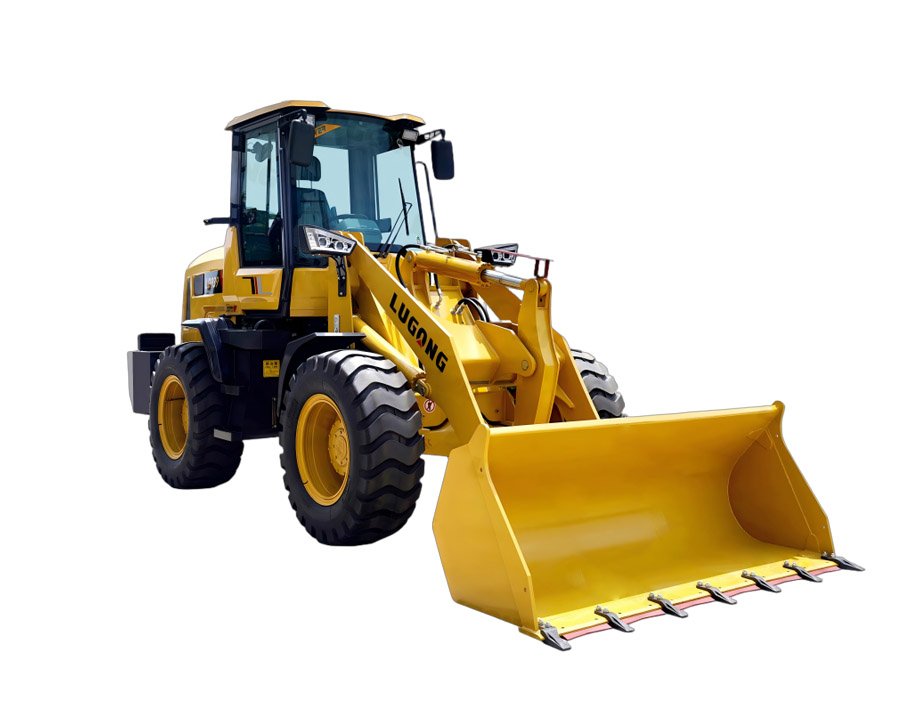

LM series 2.2 TON Wheel loader
Bucket capacity：18m³
Rated load：2200kg
Rated power：92kw
The backbone of the Lugong ER4T design: The legendary articulated oscillating floating joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction, In addition, the machine has unrivalled manceuyrability
| Main Technical Parameters | ||
| Bucket capacity | m³ | 1 |
| Rated load | kg | 2200 |
| Machine weight | kg | 45850 |
| Overall dimension (L x W x H) | mm | 6780 x 2100 x 2830 |
| Wheel base | mm | 2560 |
| Wheel track | mm | 1690 |
| Bucket width | mm | 2100 |
| Standard dumping height | mm | 3500 |
| Optional dumping height | mm | 3800/4500/5000 |
| Turning radius | mm | 5000 |
| Standard Tires | / | 17.5-25 |
| Engine model | / | Weichai Deutz 6105 Turbo |
| Rated power | kw | 92 |
