LM series loader features a compact modular design with integral gearbox, electronic shift, FOPS/ROPS-certified cab, cedar leaf tyres, and a new quick-change device for stronger, versatile performance.

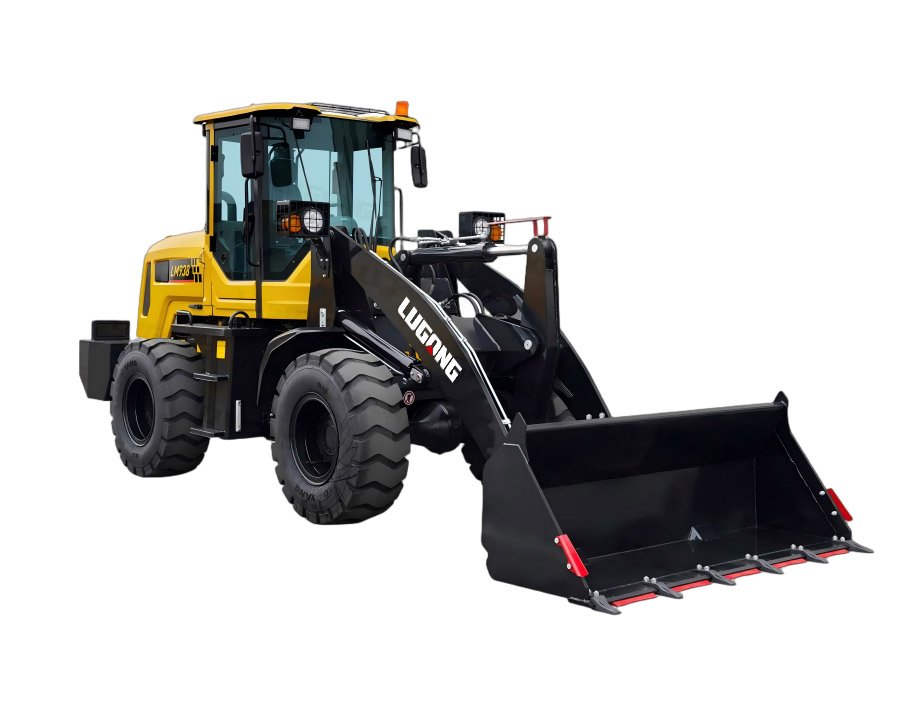

LM series 2 TON Wheel loader
Bucket capacity：0.8m³
Rated load：2000kg
Rated power：76kw
The backbone of the Lugong ER4T design: The legendary articulated oscillating floating joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction, In addition, the machine has unrivalled manceuyrability
| Main Technical Parameters | |
| Bucket capacity | 0.8 m³ |
| Rated load | 2000 kg |
| Machine weight | 5150 kg |
| Overall dimension (L x W x H) | 6750 x 1960 x 2780 mm |
| Wheel base | 2510 mm |
| Wheel track | 1570 mm |
| Bucket width | 2100 mm |
| Standard dumping height | 3500 mm |
| Optional dumping height | 3800/4500/5000 mm |
| Turning radius | 5000 mm |
| Standard Tires | 16/70-20 |
| Engine model | Yunnei 4102 turbo |
| Rated power | 76 kw |
