LM series loader features a compact modular design with integral gearbox, electronic shift, FOPS/ROPS-certified cab, cedar leaf tyres, and a new quick-change device for stronger, versatile performance.

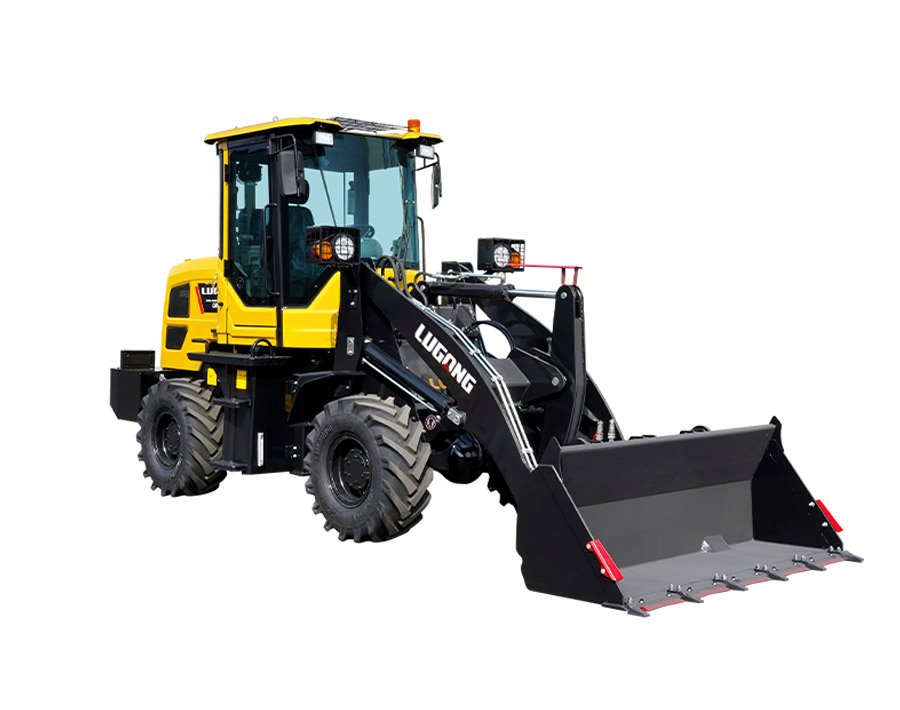

LM series 1.6 TON Wheel loader
Bucket capacity：0.8m³
Rated load：1600kg
Rated power：42kw
The backbone of the Lugong ER4T design: The legendary articulated oscillating floating joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction, In addition, the machine has unrivalled manceuyrability
| Main Technical Parameters | |
| Bucket capacity | 0.8 m³ |
| Rated load | 1600 kg |
| Machine weight | 3800 kg |
| Overall dimension (L x W x H) | 5800 x 1830 x 2650 mm |
| Wheel base | 2200 mm |
| Wheel track | 1500 mm |
| Bucket width | 1900 mm |
| Standard dumping height | 3200 mm |
| Optional dumping height | 3500/3800/4500 mm |
| Turning radius | 5000 mm |
| Standard Tires | 20.5/70-16 |
| Engine model | Yunnei 490 |
| Rated power | 42 kw |
