Stylish design with adjustable steering wheel for comfort, high-top air intake for engine protection, wide-view door frame, LCD instrument panel, and optional low-maintenance cast axle.

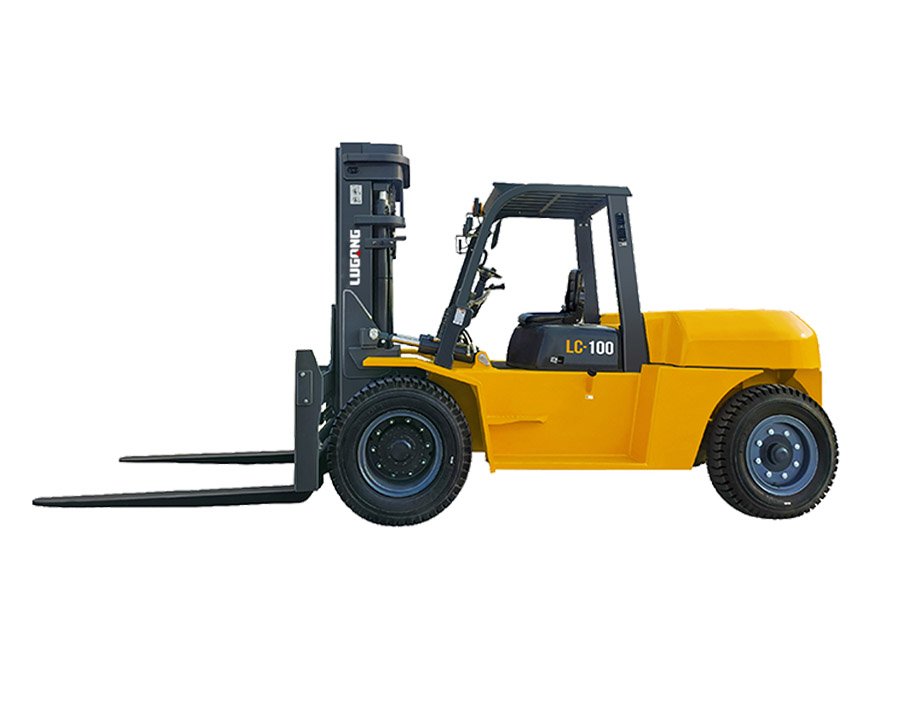

10 TON DIESEL FORKLIFT
Rated load：10000kg
Wheelbase：2800mm
Operating weight：12410kg
The backbone of the Lugong ER4T design: The legendary articulated oscillating floating joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction, In addition, the machine has unrivalled manceuyrability
| Main Technical Parameters | ||
| Rated load | KG | 10000 |
| Load center | mm | 600 |
| Overall length | mm | 5497 |
| Width | mm | 2245 |
| Overhead guard height | mm | 2570 |
| Wheelbase | mm | 2800 |
| Ground clearance | mm | 250 |
| Turning radius | mm | 4150 |
| Front tire | 9 00-20NHS | |
| Rear tire | 9 00-20NHS | |
| Fork size | mm | 1520*175*85 |
| Operating weight | KG | 12410 |
| Engine model | Quanchai4J1-115C32 | |
