Stylish design with adjustable steering wheel for comfort, high-top air intake for engine protection, wide-view door frame, LCD instrument panel, and optional low-maintenance cast axle.

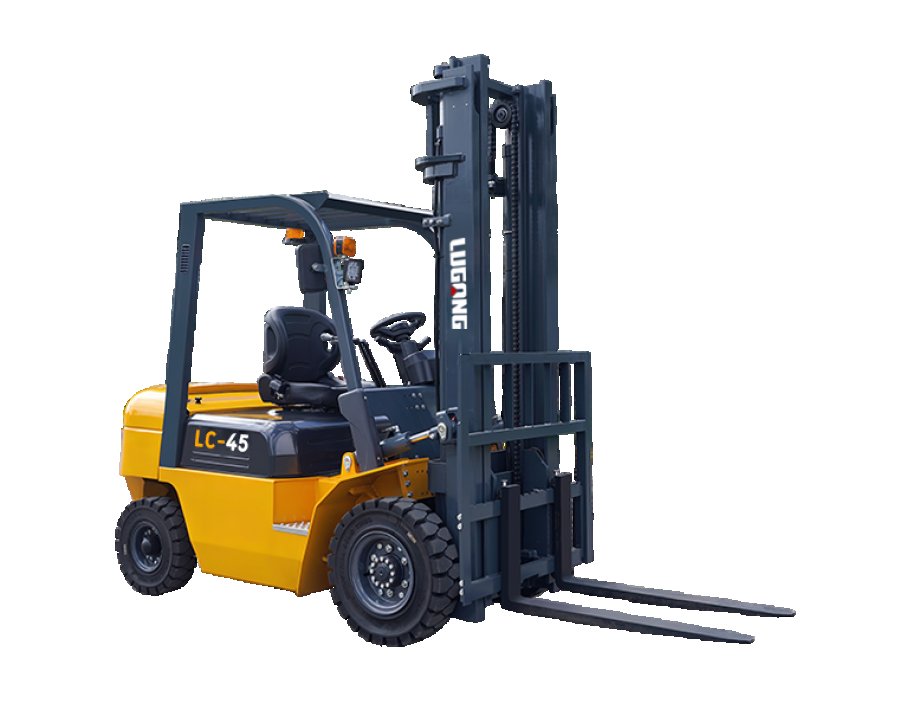

4.5 TON DIESEL FORKLIFT
Rated load：4500kg
Wheelbase：1900mm
Operating weight：5860kg
The backbone of the Lugong ER4T design: The legendary articulated oscillating floating joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction, In addition, the machine has unrivalled manceuyrability
| Main Technical Parameters | |
| Rated lifting load | 4500 kg |
| Load center distance | 500 mm |
| Free lifting height | 160 mm |
| Overall length (With fork/Without fork) | 4120/3050 mm |
| Width | 1400 mm |
| Overhead guard height | 2230 mm |
| Wheelbase | 1900 mm |
| Minimum ground clearance | 150 mm |
| Mast tilt angle (front/rear) | 6° / 12° |
| Tire no. (front) | 300-15-20PR |
| Tire no. (rear) | 7.00-12-12PR |
| Minimum turning radius (outer side) | 2820 mm |
| Minimum right angle aisle width | 4830 mm |
| Fork size (L×W×H) | 1070 × 150 × 50 mm |
| Maximum working speed (Full-load/No-load) | 18/19 km/h |
| Maximum lifting speed (Full-load/No-load) | 420/460 mm/s |
| Maximum gradeability (Full-load/No-load) | 15/20 % |
| Forklift weight | 5860 kg |
| Engine model | Quanchai4C4-50V31 |
