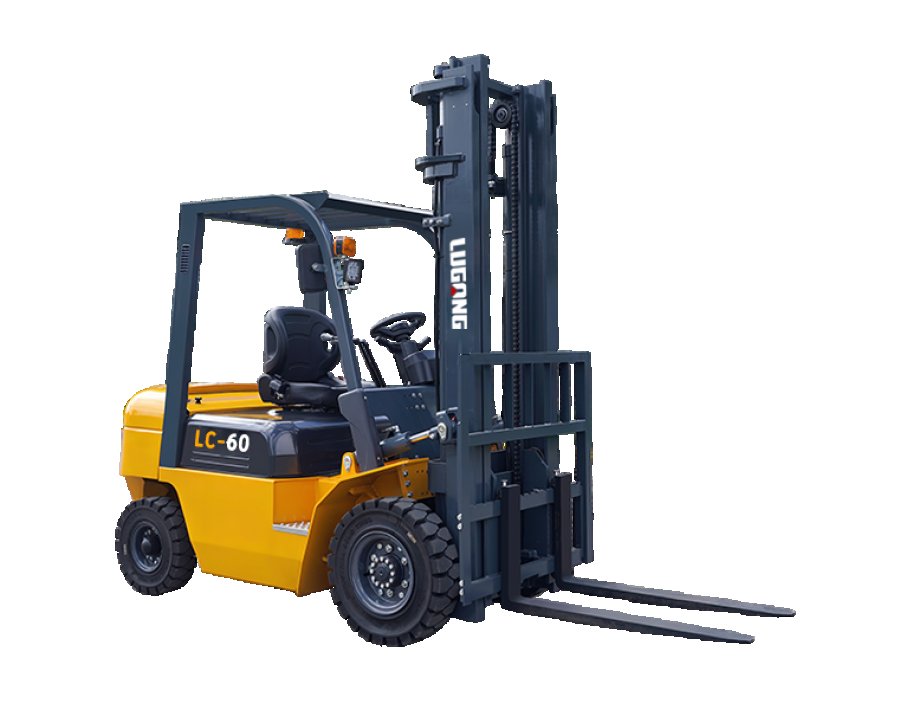

LC60

Stylish design with adjustable steering wheel for comfort, high-top air intake for engine protection, wide-view door frame, LCD instrument panel, and optional low-maintenance cast axle.

Technical Parameter

6 TON DIESEL FORKLIFT

Rated load：6000kg

Wheelbase：2250mm

Operating weight：8900kg

Inquire now

Product details

Main Technical Parameters
Rated lifting load	6000 kg
Load center distance	600 mm
Free lifting height	210 mm
Overall length (With fork/Without fork)	4720/3590 mm
Width	1970 mm
Overhead guard height	2500 mm
Wheelbase	2250 mm
Minimum ground clearance	230 mm
Mast tilt angle (front/rear)	6° / 12°
Tire no. (front)	8.25-15-14PR
Tire no. (rear)	8.25-15-14PR
Minimum turning radius (outer side)	4120 mm
Minimum right angle aisle width	5290 mm
Fork size (L×W×H)	1220 × 150 × 60 mm
Maximum working speed (Full-load/No-load)	23/29 km/h
Maximum lifting speed (Full-load/No-load)	500/530 mm/s
Maximum gradeability (Full-load/No-load)	15/20 %
Forklift weight	8900 kg
Engine model	Quanchai4J1-115C32
