Stylish design with adjustable steering wheel for comfort, high-top air intake for engine protection, wide-view door frame, LCD instrument panel, and optional low-maintenance cast axle.

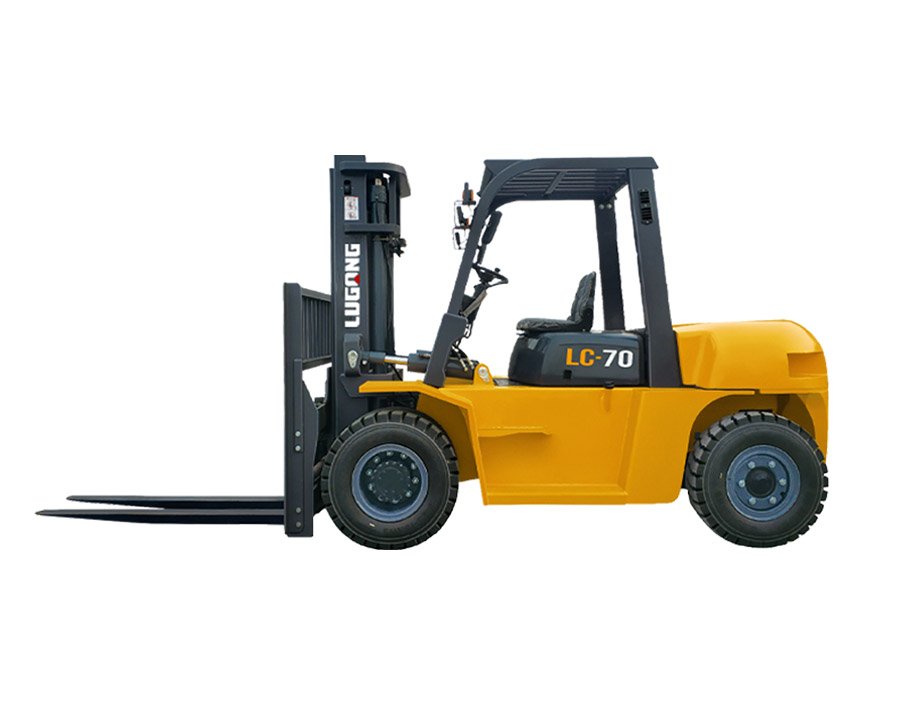

7 TON DIESEL FORKLIFT
Rated load：7000kg
Wheelbase：2250mm
Operating weight：9600kg
The backbone of the Lugong ER4T design: The legendary articulated oscillating floating joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction, In addition, the machine has unrivalled manceuyrability
| Main Technical Parameters | ||
| Rated load | KG | 7000 |
| Load center | mm | 600 |
| Overall length | mm | 4810 |
| Width | mm | 1970 |
| Overhead guard height | mm | 2500 |
| Wheelbase | mm | 2250 |
| Ground clearance | mm | 130 |
| Turning radius | mm | 4180 |
| Front tire | 8 25-15-14PR | |
| Rear tire | 8.25-15-14PR | |
| Fork size | mm | 1220*150*65 |
| Operating weight | KG | 9600 |
| Engine model | Quanchai4J1-115C32 | |
