Stylish design with adjustable steering wheel for comfort, high-top air intake for engine protection, wide-view door frame, LCD instrument panel, and optional low-maintenance cast axle.

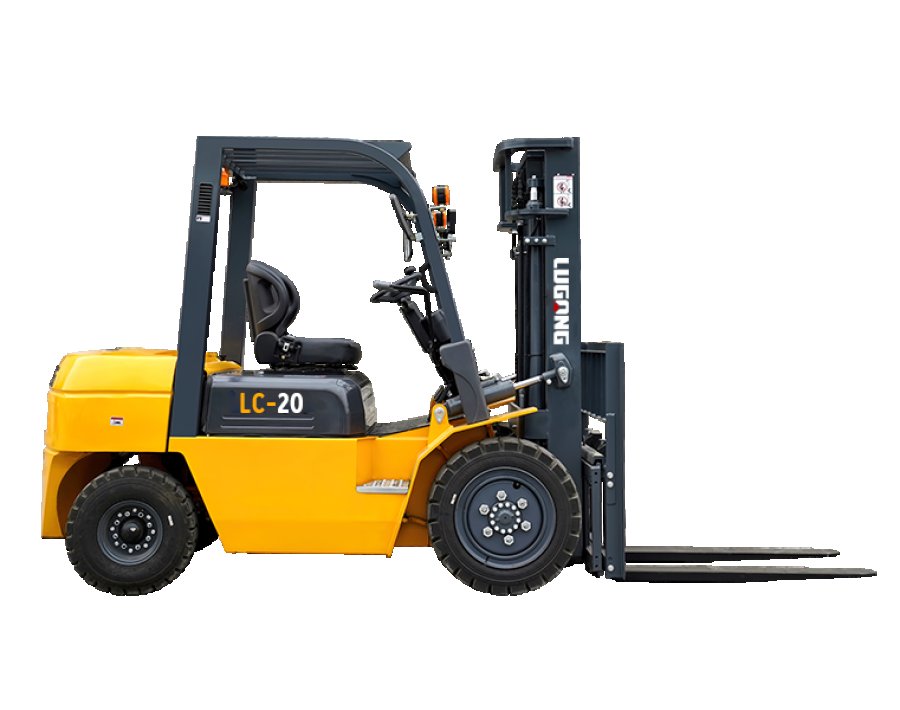

2 TON DIESEL FORKLIFT
Rated load：2000kg
Wheelbase：1600mm
Operating weight：3320kg
The backbone of the Lugong ER4T design: The legendary articulated oscillating floating joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction, In addition, the machine has unrivalled manceuyrability
| Main Technical Parameters | |
| Rated lifting load | 2000 kg |
| Load center distance | 500 mm |
| Free lifting height | 150 mm |
| Overall length (With fork/Without fork) | 3422/2502 mm |
| Width | 1170 mm |
| Overhead guard height | 2070 mm |
| Wheelbase | 1600 mm |
| Minimum ground clearance | 110 mm |
| Mast tilt angle (front/rear) | 6° / 12° |
| Tire no. (front) | 7.00x12-12PR |
| Tire no. (rear) | 6.00x9-10PR |
| Minimum turning radius (outer side) | 2170 mm |
| Minimum right angle aisle width | 3900 mm |
| Fork size (L×W×H) | 1070X100X45 mm |
| Forklift weight | 3320 kg |
| Engine model | Quanchai4C2-50V32 (National III) |
