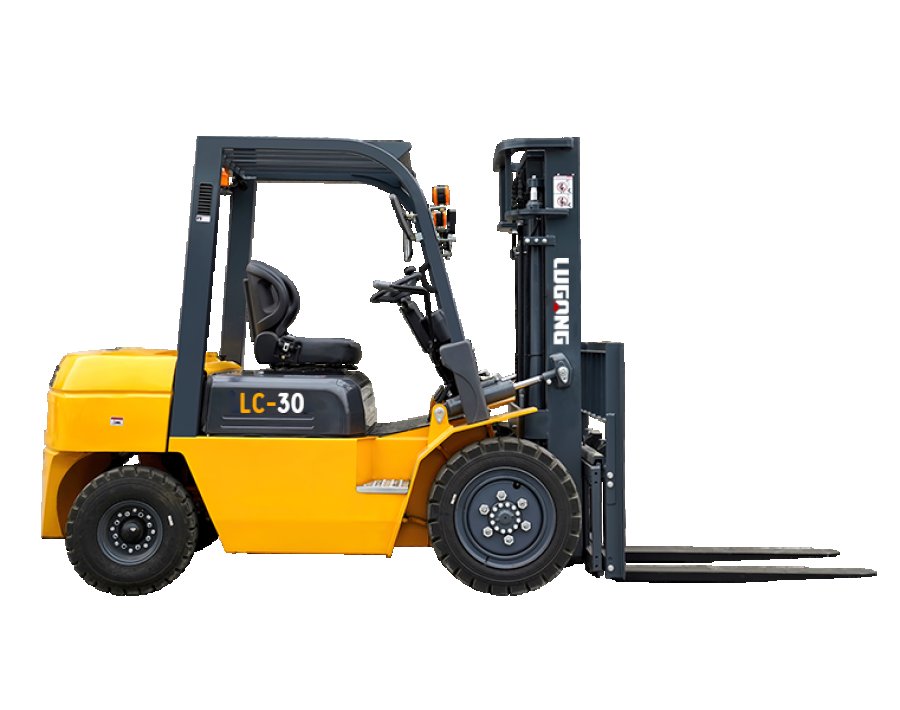

LC30

Stylish design with adjustable steering wheel for comfort, high-top air intake for engine protection, wide-view door frame, LCD instrument panel, and optional low-maintenance cast axle.

Technical Parameter

3 TON DIESEL FORKLIFT

Rated load：3000kg

Wheelbase：1700mm

Operating weight：4250kg

Inquire now

Product details

Main Technical Parameters
Rated lifting load	3000 kg
Load center distance	500 mm
Free lifting height	160 mm
Overall length (With fork/Without fork)	3752/2682 mm
Width	1225 mm
Overhead guard height	2090 mm
Wheelbase	1700 mm
Minimum ground clearance	135 mm
Mast tilt angle (front/rear)	6° / 12°
Tire no. (front)	28 × 9-15-14PR
Tire no. (rear)	6.5-10-10PR
Minimum turning radius (outer side)	2400 mm
Minimum right angle aisle width	4260 mm
Fork size (L×W×H)	1070X125X45 mm
Maximum working speed (Full-load/No-load)	18/19 km/h
Maximum lifting speed (Full-load/No-load)	440/480 mm/s
Maximum gradeability (Full-load/No-load)	15/20 %
Forklift weight	4250 kg
Engine model	Quanchai4C2-50V32 (National III)
