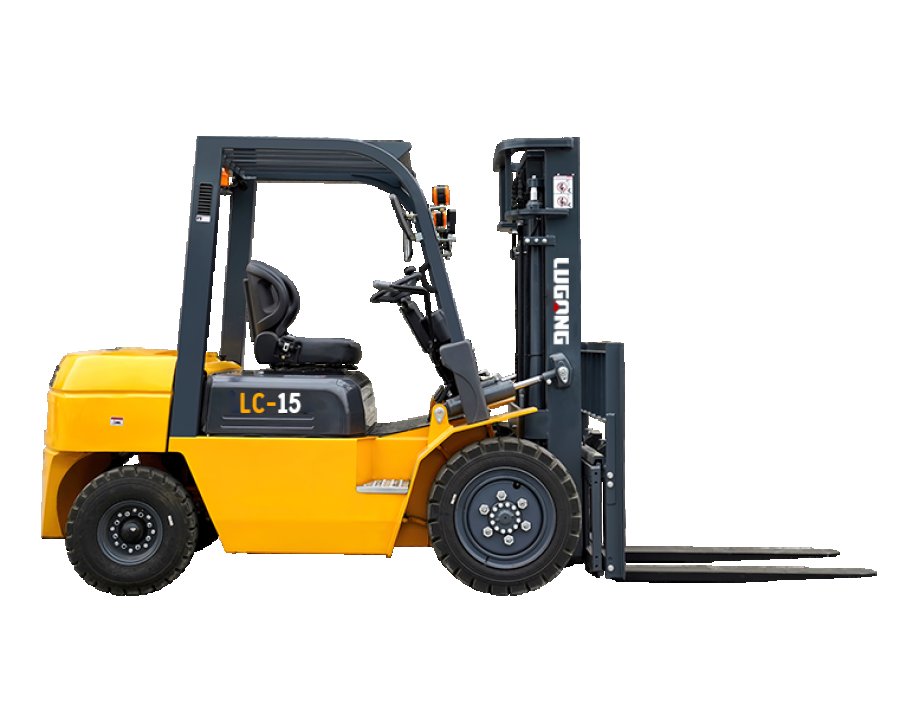

LC15

Stylish design with adjustable steering wheel for comfort, high-top air intake for engine protection, wide-view door frame, LCD instrument panel, and optional low-maintenance cast axle.

Technical Parameter

1.5 TON DIESEL FORKLIFT

Rated load：1500kg

Wheelbase：1400mm

Operating weight：2900kg

Inquire now

Product details

Main Technical Parameters
Rated lifting load	1500 kg
Load center distance	500 mm
Free lifting height	100 mm
Overall length (With fork/Without fork)	3180/2260 mm
Width	1090 mm
Overhead guard height	2050 mm
Wheelbase	1400 mm
Minimum ground clearance	110 mm
Mast tilt angle (front/rear)	6°/12°
Tire no. (front)	6.5-10-10PR
Tire no. (rear)	5.00-8-10PR
Minimum turning radius (outer side)	1950 mm
Minimum right aisle width	3630 mm
Fork size (L×W×H)	920 × 100 × 35 mm
Maximum working speed (Full-load/No-load)	14/15 km/h
Maximum lifting speed (Full-load/No-load)	500/480 mm/s
Maximum gradeability (Full-load/No-load)	20/21 %
Forklift weight	2900 kg
Engine model	Quanchai B02-082
