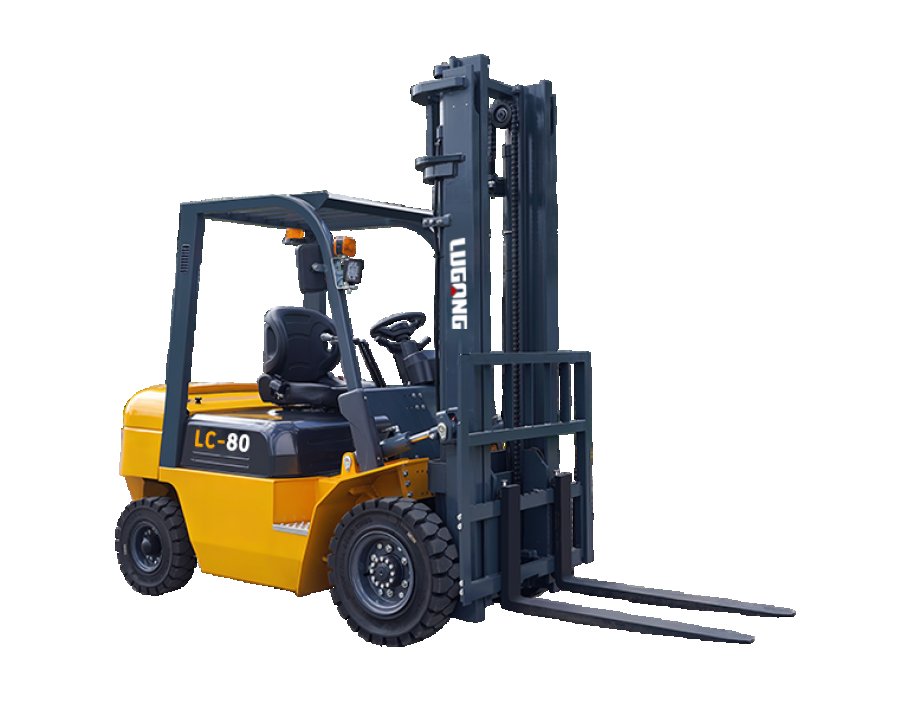

LC80

Stylish design with adjustable steering wheel for comfort, high-top air intake for engine protection, wide-view door frame, LCD instrument panel, and optional low-maintenance cast axle.

Technical Parameter

8 TON DIESEL FORKLIFT

Rated load：8000kg

Wheelbase：2800mm

Operating weight：11800kg

Inquire now

Product details

Main Technical Parameters
Rated lifting load	8000 kg
Load center distance	600 mm
Free lifting height	200 mm
Overall length (With fork/Without fork)	5175/3955 mm
Width	2245 mm
Overhead guard height	2570 mm
Wheelbase	2800 mm
Minimum ground clearance	250 mm
Mast tilt angle (front/rear)	10° / 12°
Tire no. (before)	9.00-20NHS
Tire no. (after)	9.00-20NHS
Minimum turning radius (outer side)	3755 mm
Minimum right angle aisle width	5755 mm
Fork size (L×W×H)	1520 × 170 × 70 mm
Maximum working speed (Full-load/No-load)	20/26 km/h
Maximum lifting speed (Full-load/No-load)	330/350 mm/s
Maximum gradeability (Full-load/No-load)	15/20 %
Forklift weight	11800 kg
Engine model	Quanchai4J1-115C32
